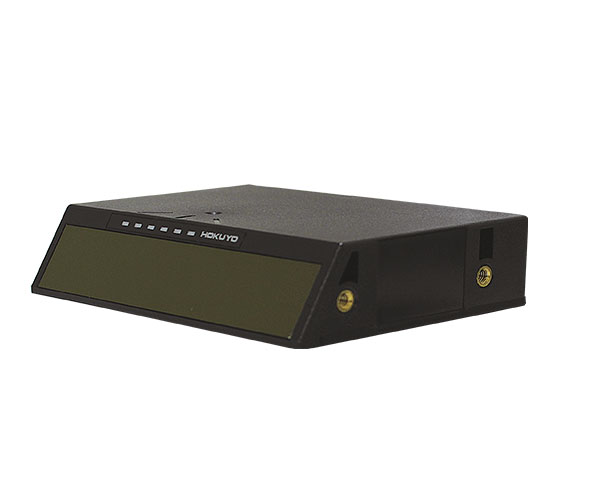

UCT-10LCM
The UCT-10LCM is an ultra-slim 3D LiDAR sensor designed for intrusion/obstacle detection, forklift pallet pocket detection and AGV/AMR cliff detection. It combines dual functionality with multi-echo data output and area configuration settings for object detection within five regions up to a 10-meter range. Equipped with a multi-layer (3-layer) feature, a scanning angle of 100° Horizontal by 6° Vertical FOV enables efficient area coverage for any stationary or mobile application. A built-in IMU will detect angular rate and acceleration to help provide real-time balance and orientation on autonomous systems, especially when navigating dynamic environments. The Ethernet 100Base-TX interface allows for easy integration with robotic and automation systems, while precise measurement accuracy and a 0.125° angular resolution ensure a safer work environment.
Applications
Compact size for narrow space installations
5-output points for flexible area setting and monitoring
Built-in outdoor spatial filtering for rain, fog and dust particles
Area Monitoring, Obstacle Detection, Localization and Mapping
